LED lights up life, shines your future

SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 1
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 2
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 3
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 4
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 5
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 6
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 1
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 2
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 3
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 4
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 5
SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210 6

SMD3030 210LEDs 23x11mm CCT Flex LED Wall Wash VH-1321-210

The product is a Flex LED Wall Wash with 23x11mm size and 5m per roll length. It has a power output of 18W per meter and use SMD3030 high brightness LEDs. The number of LEDs is 42leds per meter, which means there are 210 LEDs per roll. It has warm white and cold white colors. The color temperature range is 2700+6500K, and 15°20°30°60°beam angle.

    oops...!

    no product data.

    Go to homepage
    Product NO.
    VH-1321-210
    Size
    5000x23x11mm
    LED Type
    SMD3030
    LED Quantity
    210LEDs
    LED Color
    2700+6500K
    Luminous
    1980Lm/m
    Voltage
    DC24V
    Power
    18W
    CRI
    >80
    IP grade
    IP67
    Beam Angle
    15°/20°/30°/60°
    ERP
    F
    Working temperature
    -20~+60℃
    Storage temperature
    -20~+60℃
    Life Time
    >36000 hours
    Warranty
    3 years
    未标题-3 (2)

    Good reasons for working with us

    VH Smart lighting is committed to provide high quality LED lighting product and superior service for market.

    Service: 15 years professional LED light manufacturer, served > 2000 companies.

    Complaint: feedback <24 hours. If quality problem, 100% compensation

    Certificates: UL/CE//RoHs/ERP/ISO9001/TUV etc.

    OEM &ODM: Experience for Wal-Mar-t, Targ-et, Cost-co etc.

    Quality: 100% test before shipping, repurchase rate 99.8%

    Customized: Free design, 20-50 new products each month


    4 (40)
    $10000000
    Annual revenue
    1 (47)
    15 years
    Factory
    3 (37)
    Wal-Mart, Target, etc.
    Partner
    2 (41)
    99.8%
    Customers repurchase
    1 (136)

    Flex LED Wall Washer light

    1. The LED are packaged with pure gold wires and large-size chips.

    2. Only one Bin LED is used for each order, and keep the same Bin LED in subsequent orders to ensure the consistency of the product.

    3. The production process adopts high-temperature, lead-free SMT technology, the solder joints are smooth and full.

    4. Use double-layer PCB to ensure stable electrical performance.

    5. Use original authentic 3M tape, strong and long-lasting adhesion.

    6. A variety of installation accessories are optional, flexible and convenient to use.

    7. Different IP grade are available: IP20, IP65, IP66, IP68.

    8. High light transmittance, environment friendly silicone material is used for waterproof product, colorless, odorless and anti-yellowing.


    Product Details

    3528
    PCB
    3OZ Double layer PCB
    芯片
    Large size LED chip
    High brightness
    灯板
    Small angle
    2-3 meters long-distance irradiation
    背胶 (2)
    Famous Adhesive Tape
    High Viscosity, Paste more firmly

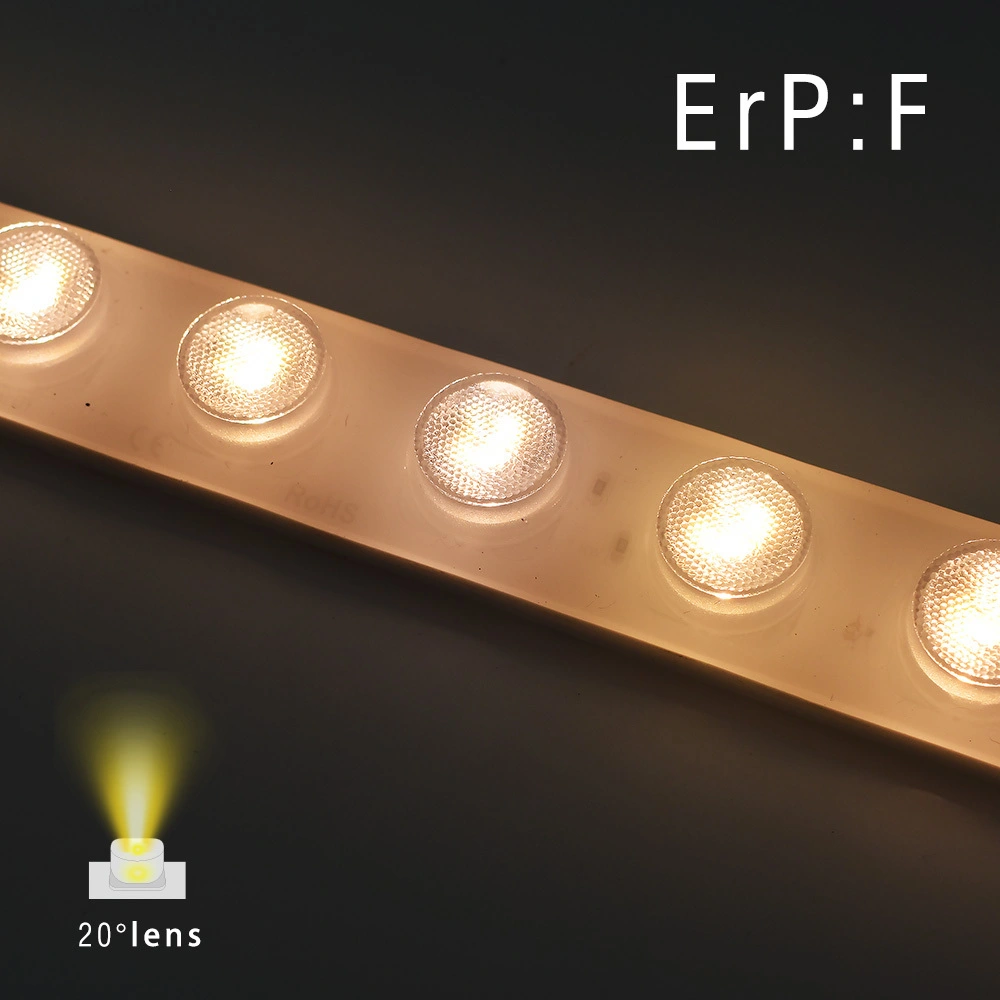

    Multi-angle lens optional

    3528
    15°
    芯片
    20°
    灯板
    30°
    背胶 (2)
    60°
    积分球
    Integrating Sphere test
    老化
    Aging test
    色温检测
    Color temperature detection
    点亮测试
    Illumination test

    Packaging

    mmexport1581139546966
    Flex LED Wall Washer light
    铝薄袋 (2)
    Aluminum Thin Bag
    5@9LA9O01JTE2R%(HY9BD4N
    Carton

    Application Scenario

    Indoor KTV, bars, entertainment venues, e-sports and other places decoration, to meet people's demand for colorful and dreamy nightlife.

    mmexport1581139546966
    386b9c74530544889685bfc6aa24e9ae
    5@9LA9O01JTE2R%(HY9BD4N
